5. Binding¶
Calling value() everywhere gets tedious, especially with objects that draw themselves. Binding lets Keyed write the animated value into a field or setter before every draw(), so your code just uses plain variables.
Field binding¶
Keyed.bind(object, "field") animates a float field by name. The field's current value becomes the default:
float x = 60;
float diameter = 20;
void setup() {
Keyed.init(this).setDuration(3);
Keyed.bind(this, "x")
.key(Key.at(0).setEasing(1 / 3f), 60f)
.key(Key.at(1.5f).setEasing(1 / 3f), 340f)
.key(Key.at(3).setEasing(1 / 3f), 60f);
Keyed.bind(this, "diameter")
.key(0, 20f)
.key(1.5f, 80f)
.key(3, 20f);
}
void draw() {
background(255);
circle(x, 180, diameter);
}
No value() calls: x and diameter are plain floats, already up to date.

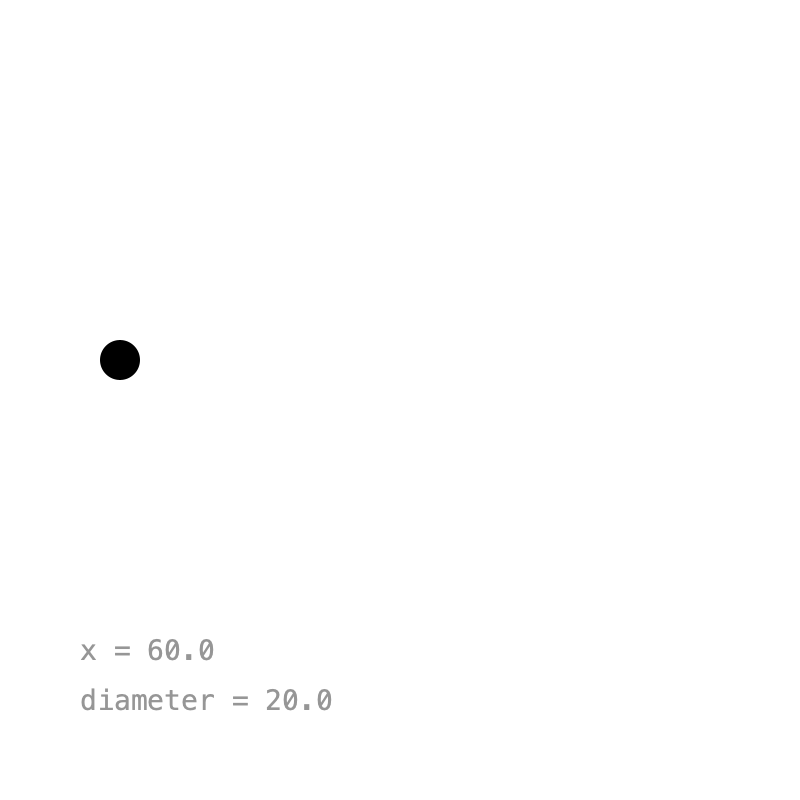

Full sketch: FieldBinding
import ch.domizai.keyed.*;
// Plain fields. Their values here become the defaults.
float x = 60;
float diameter = 20;
void settings() {
size(400, 400);
}
void setup() {
Keyed.init(this).setDuration(3);
textFont(createFont("Courier", 14));
// bind(object, "field") writes the animated value into a float field
// before every draw(). It works for float fields of any object,
// e.g. Keyed.bind(ball, "x").
Keyed.bind(this, "x")
.key(Key.at(0).setEasing(1 / 3f), 60f)
.key(Key.at(1.5f).setEasing(1 / 3f), 340f)
.key(Key.at(3).setEasing(1 / 3f), 60f);
Keyed.bind(this, "diameter")
.key(0, 20f)
.key(1.5f, 80f)
.key(3, 20f);
}
void draw() {
background(255);
// No value() calls: x and diameter are plain floats, already up to date.
noStroke();
fill(0);
circle(x, 180, diameter);
fill(150);
text("x = " + nf(x, 1, 1), 40, 330);
text("diameter = " + nf(diameter, 1, 1), 40, 355);
}
Setter binding¶
For any other type, bind a setter: a function that receives the animated value. Pass a Lerp (how to blend, see Types), a default value and the setter:
Keyed.bind(new ColorLerp(), color(255), c -> bg = c)
.key(0, color(255, 235, 215))
.key(2, color(215, 230, 255))
.key(4, color(255, 235, 215));
Or call bind() on an existing Keyed. The setter can convert the value, here from an int to a line of text:
score = Keyed.ofInt()
.key(0, 0)
.key(4, 100)
.bind(this::showScore);
void showScore(int v) {
label = "score " + v;
}

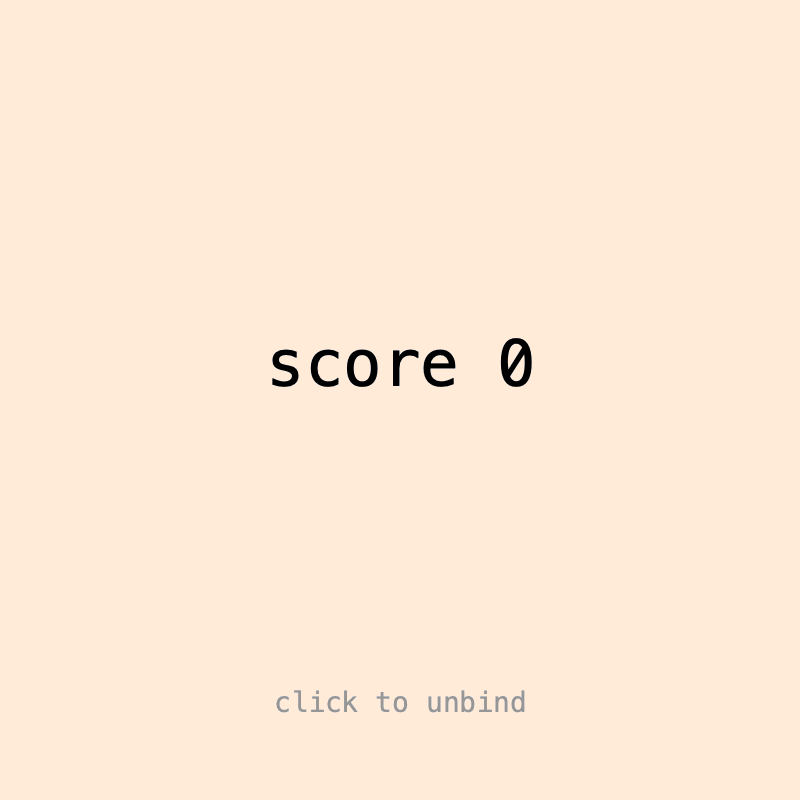

unbind()stops the updates, so the target keeps its last value. In the GIF the score freezes for a moment.apply()writes the value right away, without waiting fordraw(), e.g. to use it insetup().
Full sketch: SetterBinding
import ch.domizai.keyed.*;
import ch.domizai.keyed.lerps.*;
int bg;
String label = "";
Keyed<Integer> score;
boolean bound = true;
void settings() {
size(400, 400);
}
void setup() {
Keyed.init(this).setDuration(4);
textFont(createFont("Courier", 14));
textAlign(CENTER, CENTER);
// A Lerp, a default value and a setter, which receives
// the animated value before every draw().
Keyed.bind(new ColorLerp(), color(255), c -> bg = c)
.key(0, color(255, 235, 215))
.key(2, color(215, 230, 255))
.key(4, color(255, 235, 215));
// Or bind an existing Keyed. The setter can convert the value,
// here from an int into a line of text.
score = Keyed.ofInt()
.key(0, 0)
.key(4, 100)
.bind(this::showScore);
// apply() writes the value right away, without waiting for draw(),
// e.g. to use label in setup().
score.apply();
println(label);
}
void showScore(int v) {
label = "score " + v;
}
void draw() {
// No value() calls: bg and label are already up to date.
background(bg);
fill(0);
textSize(32);
text(label, width / 2, 180);
fill(150);
textSize(14);
text(bound ? "click to unbind" : "unbound, click to bind", width / 2, 350);
}
void mousePressed() {
// unbind() stops the updates, so label keeps its last value.
// bind() starts them again.
bound = !bound;
if (bound) {
score.bind(this::showScore);
} else {
score.unbind();
}
}
Binding objects¶
Binding shines with objects. Each Ball gets its y field bound by name, and its color through a setter method. Delaying the keys of each ball a little creates a wave:
for (int i = 0; i < 7; i++) {
Ball b = new Ball(this, 60 + i * 47, 300);
balls.add(b);
float delay = i * 0.1f;
Keyed.bind(b, "y")
.key(Key.at(delay).setEasing(1 / 3f), 300f)
.key(Key.at(delay + 0.5f).setEasing(1 / 3f), 120f)
.key(Key.at(delay + 1).setEasing(1 / 3f), 300f);
Keyed.bind(new ColorLerp(), color(0), b::setColor)
.key(delay, color(0))
.key(delay + 0.5f, color(230, 60, 60))
.key(delay + 1, color(0));
}

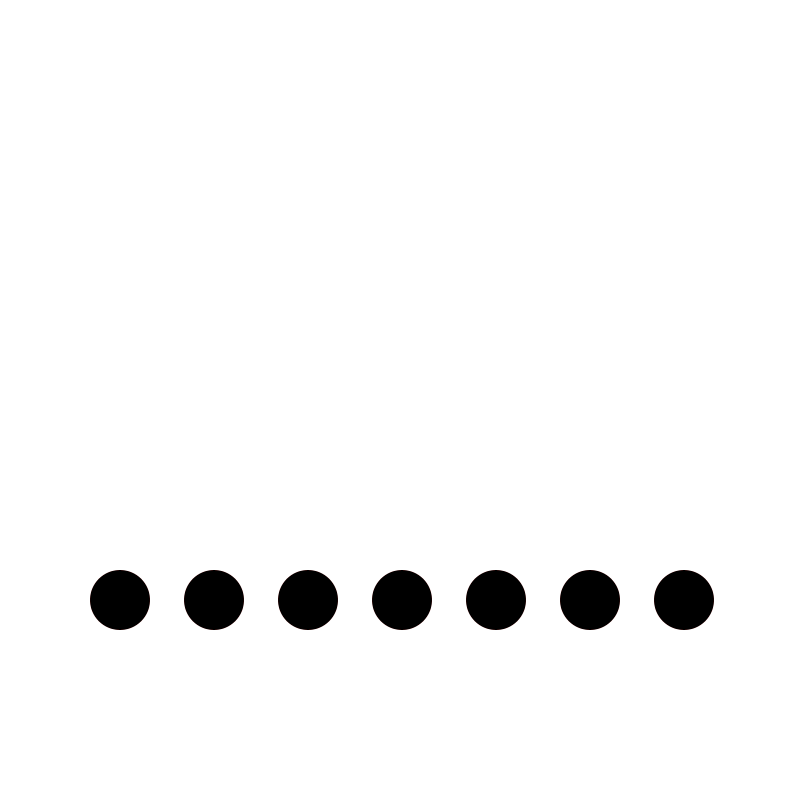

The balls are always up to date and simply draw themselves.
Full sketch: ObjectBinding
import java.util.ArrayList;
import ch.domizai.keyed.*;
import ch.domizai.keyed.lerps.*;
ArrayList<Ball> balls = new ArrayList<>();
void settings() {
size(400, 400);
}
void setup() {
Keyed.init(this).setDuration(2);
for (int i = 0; i < 7; i++) {
Ball b = new Ball(this, 60 + i * 47, 300);
balls.add(b);
// Each ball starts a little later than the one before.
float delay = i * 0.1f;
// Binds the float field y of this ball, by name.
Keyed.bind(b, "y")
.key(Key.at(delay).setEasing(1 / 3f), 300f)
.key(Key.at(delay + 0.5f).setEasing(1 / 3f), 120f)
.key(Key.at(delay + 1).setEasing(1 / 3f), 300f);
// Fields can only be bound if they are floats. For anything else,
// like this int color, bind a setter of the object instead.
Keyed.bind(new ColorLerp(), color(0), b::setColor)
.key(delay, color(0))
.key(delay + 0.5f, color(230, 60, 60))
.key(delay + 1, color(0));
}
}
void draw() {
background(255);
// The balls are already up to date; they just draw themselves.
for (Ball b : balls) {
b.draw();
}
}
Next: Paths.
